Natural Stone Panels

NATURAL STONE ON ALUMINIUM HONEYCOMB PANEL

Lightweight Natural Stone honeycomb panels offer excellent options for almost any construction project where you’re looking for that LUXURIOUS natural stone look, but without the cost and weight or fragility that typically accompanies it.

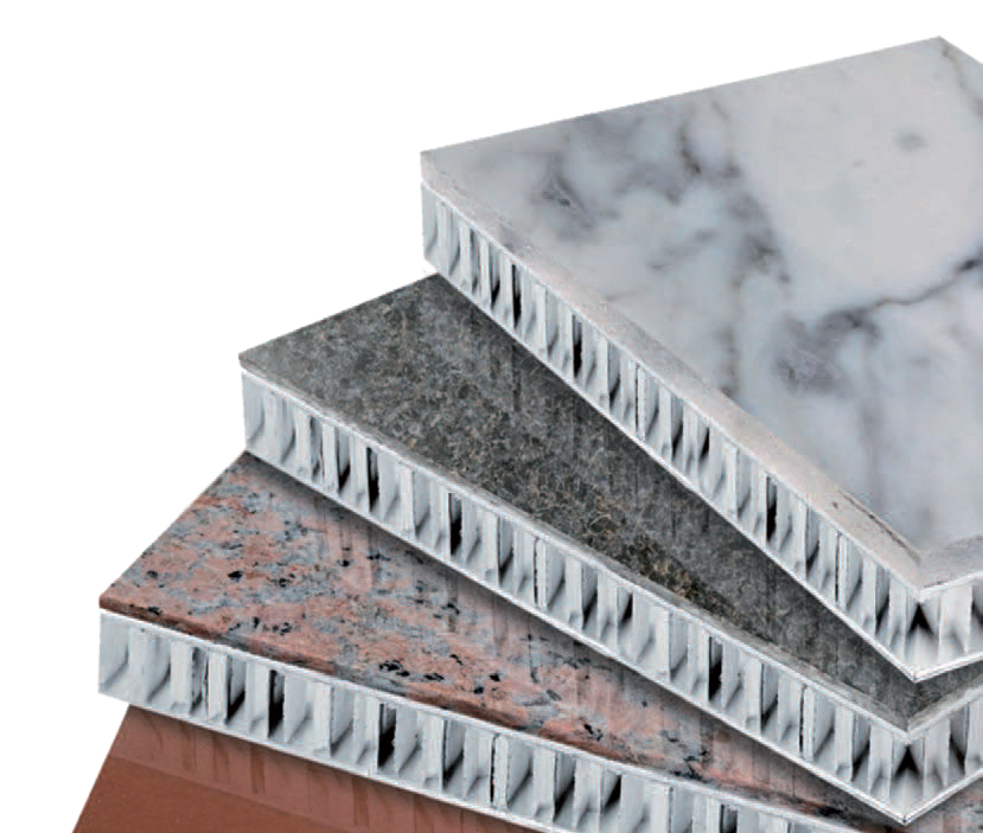

Our panels use a thin piece of natural stone veneer (typically around 5mm thick) which is attached to a special aluminium honeycomb backing panel that provides incredible strength and durability.

A Natural Stone honeycomb panels are innovative architectural materials that combine the natural beauty of stone with the structural efficiency of honeycomb technology.

These panels are crafted by adhesion thin layers of stone to lightweight honeycomb cores, resulting in a product that is both strong and lightweight. One of the key advantages of stone honeycomb panels is their strength. Additionally, the honeycomb core provides excellent insulation properties, which can contribute to energy savings.

They use less stone compared to traditional stone cladding, reducing the environmental impact of mining and quarrying.

The panels are available in a wide range of stone types, from granite and marble to slate and limestone, travertine  offering architects and designers diverse textures and colours to wok with.

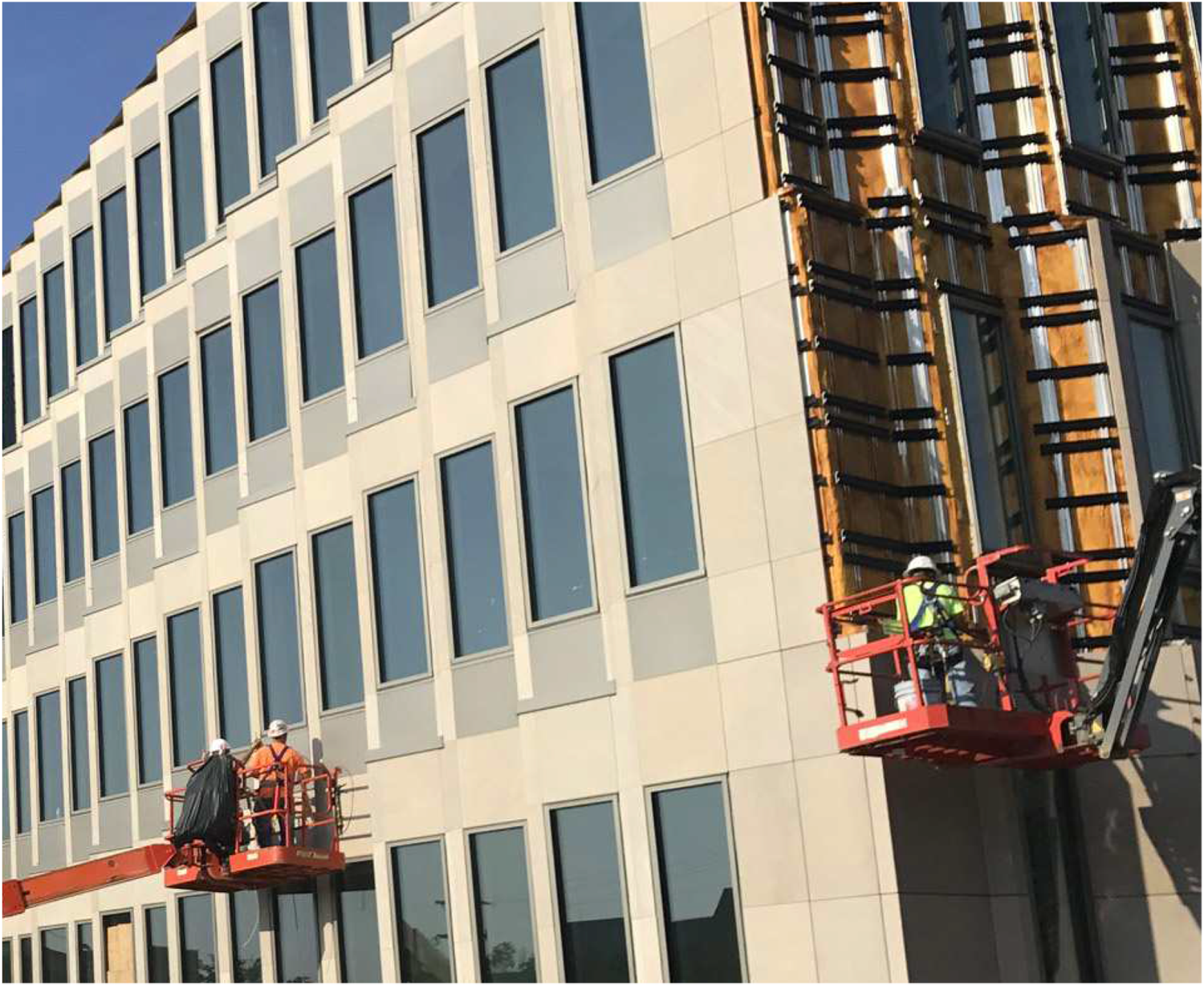

They are also easy to install, with a system that can be mounted directly onto building facades, reducing installation time and costs.

Stone honeycomb panels are not only aesthetically pleasing but also offer durability and low maintenance.

They are resistant to weathering and do not require frequent replacement, making them a cost-effective choice.

Stone honeycomb panels represent a fusion of modern engineering and traditional materials, providing a sustainable, modern style and practical solution for contemporary architectural design.

Recommended thickness for different scenarios：
For external curtain wall, the thickness of stone is 4-5mm,the thickness of aluminium honeycomb panel is >25mm;

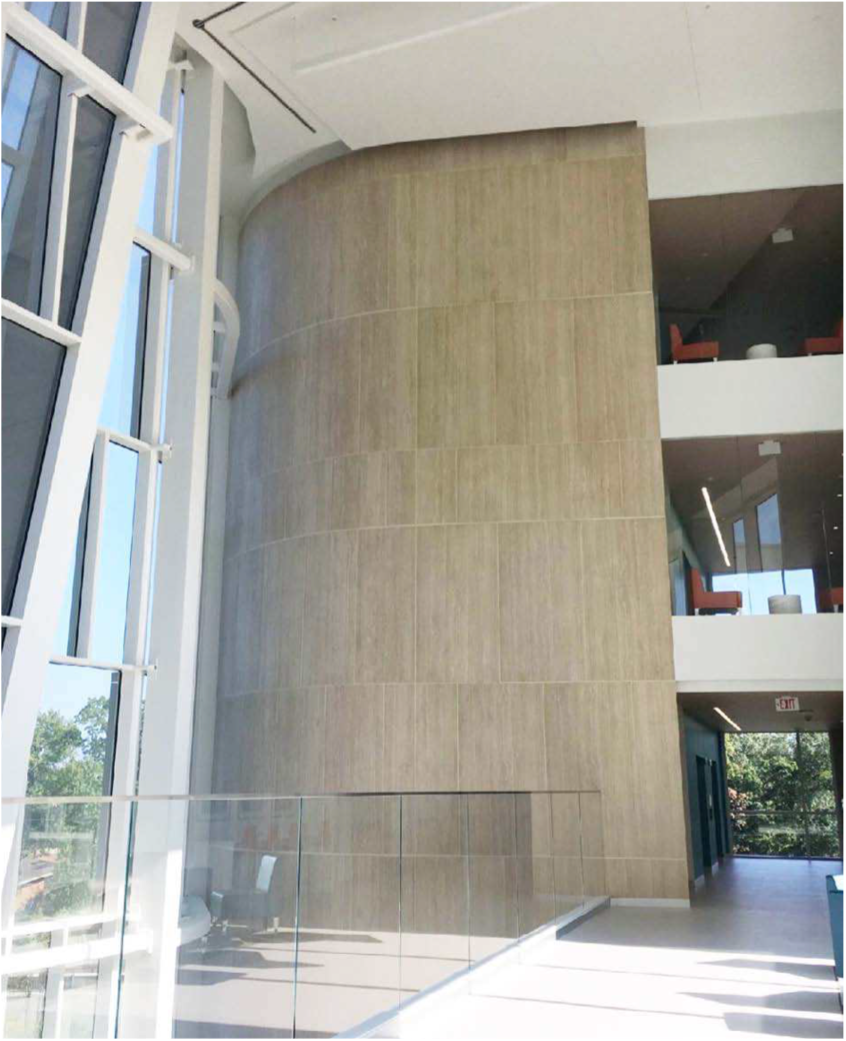

Internal wall, stone thickness is 3-4-5mm, honeycomb panel thickness is 15mm;
Internal ceiling, the thickness of stone is 3-4mm,the thickness of honeycomb panel is 15-20mm;
Floor panels, stone thickness is 5-8mm, honeycomb panel thickness is 10-15mm.
Edge treatments: include sealing, bevelling, or adding a protective trim

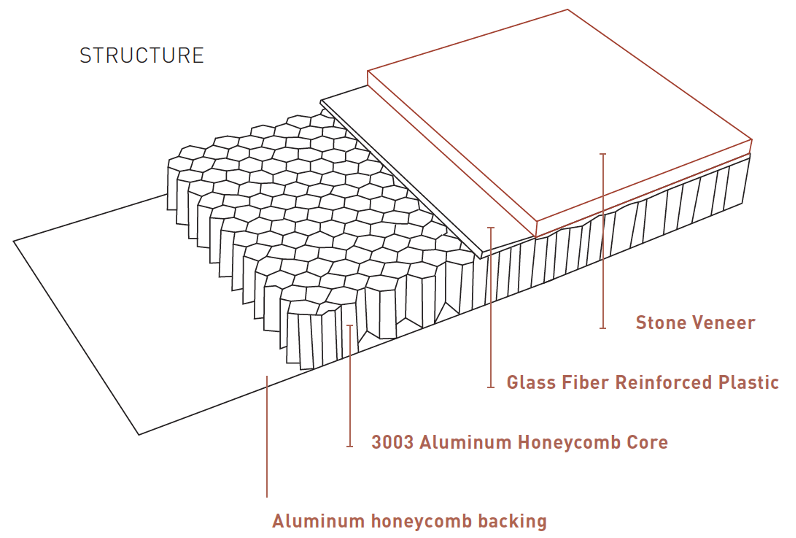

PANEL MATERIAL COMPOSITION

  • Material: Natural stone

  • Backing: Fiberglass or aluminium foil.

  • Honeycomb structure: 3003 Aluminium foil.

  • Adhesives: Modified astronautic grade epoxy resin (-40.C to 100.C for long term).

  • Suspender: Stainless steel Stone

SPECIFICATION

  • Material: 3-8mm Natural Stone. Backing: 13mm or 18mm Aluminium Honeycomb Panel.

  • Total Thickness: 10 - 25mm.

  • Maximum size: 1500*3000mm (marble) and 1200*2400mm (granite).

FAQ

  • Our MOQ is typically 1 pallet per design, but we recommend ordering a minimum of a 20” container to ensure secure delivery. We accept mixed loading of multiple products.

    For special orders such as trial orders, the MOQ is negotiable based on specific conditions.

    Please contact us to discuss your requirements and we will provide you with the best possible solution.

  • Description text goes hereYes, we provide samples of our sintered stone products.

    In most cases, our samples are free of charge. However, there may be instances where we ask customers to cover the courier costs or provide their courier account for shipping.

    We understand the importance of evaluating our products before making a purchase decision, and we strive to make the sample process as convenient and cost-effective as possible for our customers.

    Please feel free to inquire about our sample policy for specific products or quantities.

  • The lead time for production and delivery varies depending on the quantity and specific requirements of your Natural stone order.

    If we have stock available, we can arrange loading within approximately 7 days. However, if stock is insufficient, we may need to wait for production or delivery from another country , Europe or elsewhere.

    Upon order confirmation, our sales team will provide you with an estimated timeline based on your specific order details.

  • We have a stringent quality control process in place to ensure the highest standards of our sintered stone products. We conduct thorough inspections at each stage of production, from raw material sourcing to final packaging, to guarantee quality and consistency.

  • Yes, we have obtained relevant certifications and test reports to validate the quality and performance of our stone products. We can provide these documents upon request to showcase our commitment to delivering high-quality materials.

  • Generally we accept the following two payment terms:

    1) Bank Transfer

    50% advance payment as deposit to keep the stock or arrange the production, the balance before loading.

    2) L/C at sight

    Our sales team will provide you with detailed information on the payment terms upon order confirmation.

  • We strive to respond to inquiries promptly. You can typically expect to receive a reply within 24 hours after sending your inquiry. Our team is dedicated to providing timely and efficient customer service.

  • We utilize various communication methods, including Email, Telephone, Wechat and WhatsApp, to ensure effective and efficient communication with our customers.

Get A Free Quote Now

Contact us today to get a free quote. Our team is ready to assist you and provide tailored solutions to your specific needs.
